PAW3
Weigh Price Labeller
PAW 3
Weigh Price Labeller
Reliable Weighing and Labelling
PAW3 – Highly Automated – Flexible – Reliable
The PAW3 is our solution for highly automated production lines. All necessary adjustments during product changeovers are carried out automatically. The PAW3 is available in various versions for different weighing ranges, product types, and product dimensions. It supports connections to any number of additional printers, allowing labels to be applied from the top, bottom or laterally – in any desired combination.
- Also usable as a checkweigher
- Automatic adjustment of transportation speed, labeller height and cross position when switching products
- Automatic adjustment of the air-jet applicator to the label size when switching labels
Optional: automatic adjustment of product guides during product changeovers
Optional: integrated camera system for quality control of the print image
- Minimized Consumption
Significantly reduced consumption values thanks to optimization of the blow-head applicator.
- Excellent Clarity
Total and daily performance per PLU and PAW3 can be easily monitored via integrated counters.
The current label layout is displayed on the screen.
- Optimal Accessibility
All functional elements are easily accessible, making the system particularly easy to clean and maintain.
Technical Data
Width 300 mm
Height 200 mm
Bottom: length 35–170 mm, width 35–110 mm
Optional: thermal transfer
Other interfaces on request

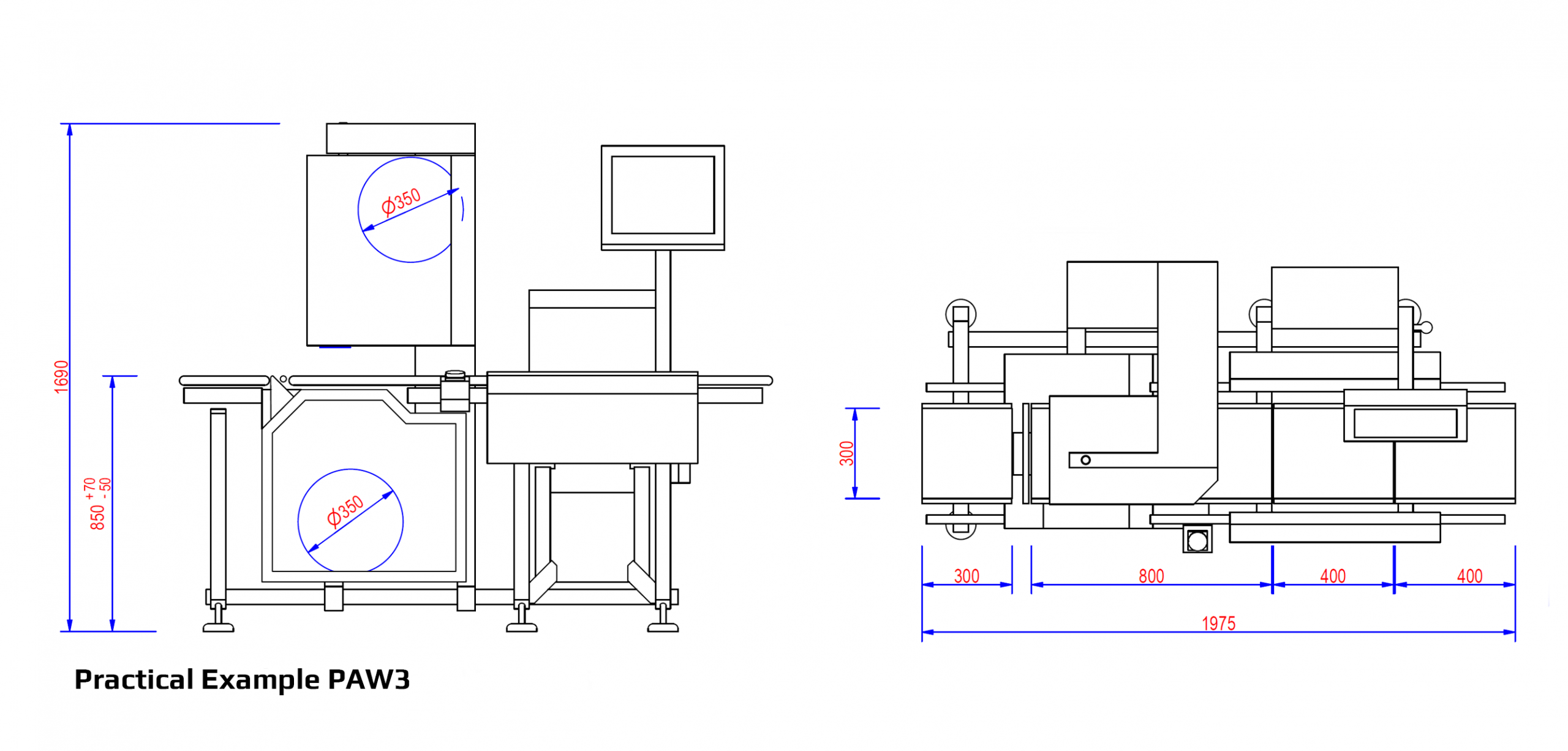

Practical Example / Diagram
